1. 获取商户自助平台账号
合作确认后，HaiPay 将根据《商户接入申请表》中所填写的“管理员账号信息”，创建可供商户登录商户管理自助平台的管理员账号。 届时，请注意查收 HaiPay 下发的激活邮件，接入方可根据邮件指引激活管理员账号。 首次登录需要更改密码，请确保密码安全，以防外泄。2. 获取密钥appId和密钥

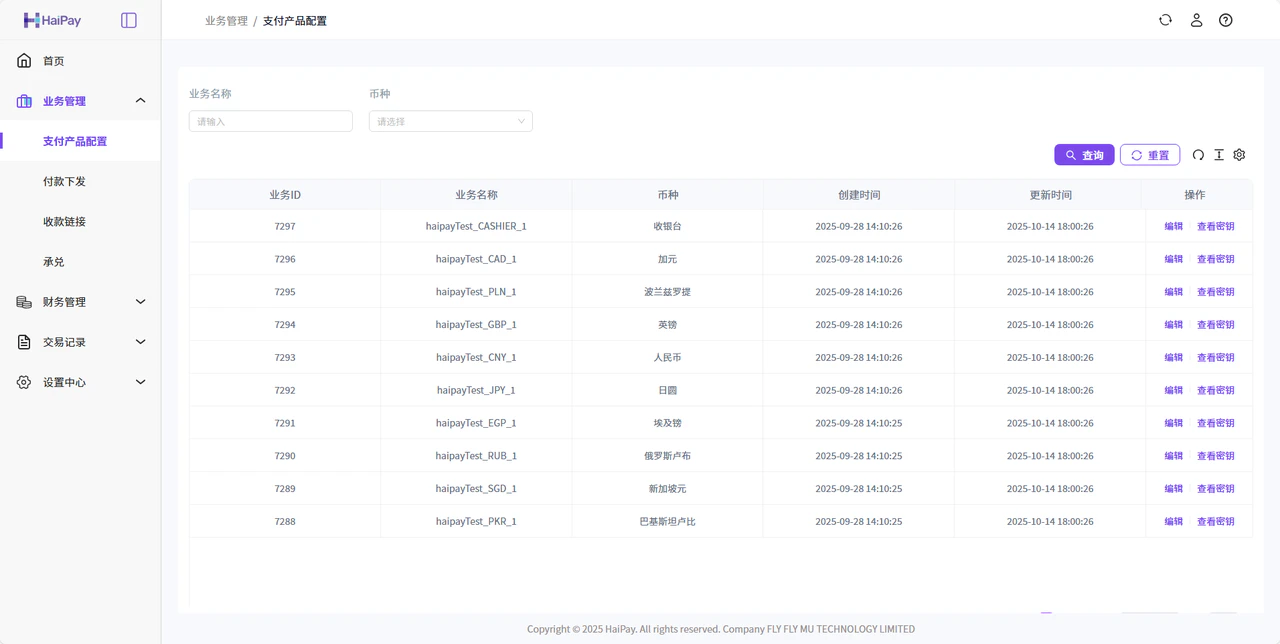

联调接入所需的商户appId，可通过商户管理平台获取。 签名使用的是SHA256WithRSA签名算法，需要商户自行生成公私钥信息，并将公钥通过商户管理平台上传，同时下载HaiPay的公钥。请妥善保管密钥信息，若不慎泄漏密钥，请及时更新密钥。 配置入口：「业务管理」-「支付产品配置」
商户appId和密钥是配套的，区分币种、区分测试环境与正式环境。
3. 公钥和私钥配置
3.1 公钥和私钥的作用
3.2 生成公钥私钥
私钥自行保存，公钥请添加到HaiPay后台，请去掉前后的-----BEGIN XXX KEY-----和-----END XXX KEY-----，以及换行和空格
方式一：使用openssl生成
请参考网上示例，需安装openssl，密钥位数2048位方式二：在线生成密钥对
RSA密钥也可通过其他在线生成工具生成。方式三：通过代码生成
商户公私钥可通过以下SDK生成，生成的商户私钥请商户自己妥善保管，用于请求haipay报文的加签操作，商户公钥通过平台上传给haipay用于验证商户签名防止报文在网络传输过程中被篡改，同时在平台上获取haipay公钥放到自己程序中，用于验证haipay加签报文的签名。显示 生成密钥
显示 生成密钥
/**
* 生成2048位的RSA密钥对，并将公钥和私钥转为PEM格式
*
* @return 一个包含公钥和私钥的Map，键为"publicKey"和"privateKey"
*/
public static Map<String, String> generateRSAKeyPair() {
try {
// 创建 KeyPairGenerator 对象，并指定 RSA 算法
KeyPairGenerator keyPairGenerator = KeyPairGenerator.getInstance("RSA");
// 初始化密钥长度为 2048
keyPairGenerator.initialize(2048);
// 生成密钥对
KeyPair keyPair = keyPairGenerator.generateKeyPair();
// 获取公钥和私钥
PublicKey publicKey = keyPair.getPublic();
PrivateKey privateKey = keyPair.getPrivate();
// 转换公钥和私钥为 PEM 格式
String publicKeyPem = convertPublicKeyToPEM(publicKey);
String privateKeyPem = convertPrivateKeyToPEM(privateKey);
// 将公钥和私钥存入 Map
Map<String, String> keyPairMap = new HashMap<>();
keyPairMap.put("publicKey", publicKeyPem);
keyPairMap.put("privateKey", privateKeyPem);
return keyPairMap;
} catch (NoSuchAlgorithmException e) {
throw new RuntimeException("Failed to generate RSA key pair", e);
}
}
/**
* 将公钥转换为 PEM 格式
*
* @param publicKey 公钥对象
* @return PEM 格式的公钥字符串
*/
private static String convertPublicKeyToPEM(PublicKey publicKey) {
String encodedPublicKey = Base64.getMimeEncoder(64, "\n".getBytes())
.encodeToString(publicKey.getEncoded());
return "-----BEGIN PUBLIC KEY-----\n"
+ encodedPublicKey
+ "\n-----END PUBLIC KEY-----";
}
/**
* 将私钥转换为 PEM 格式
*
* @param privateKey 私钥对象
* @return PEM 格式的私钥字符串
*/
private static String convertPrivateKeyToPEM(PrivateKey privateKey) {
String encodedPrivateKey = Base64.getMimeEncoder(64, "\n".getBytes())
.encodeToString(privateKey.getEncoded());
return "-----BEGIN PRIVATE KEY-----\n"
+ encodedPrivateKey
+ "\n-----END PRIVATE KEY-----";
}
4. 签名
| 类型 | 说明 |
|---|---|
| 算法 | RSA |
| 签名算法 | SHA256WithRSA |
| 密钥长度 | 2048 |
显示 签名工具
显示 签名工具
import lombok.extern.slf4j.Slf4j;
import org.apache.tomcat.util.http.fileupload.IOUtils;
import javax.crypto.Cipher;
import java.io.ByteArrayOutputStream;
import java.nio.charset.Charset;
import java.nio.charset.StandardCharsets;
import java.security.Key;
import java.security.KeyFactory;
import java.security.KeyPair;
import java.security.KeyPairGenerator;
import java.security.NoSuchAlgorithmException;
import java.security.PrivateKey;
import java.security.PublicKey;
import java.security.Signature;
import java.security.spec.PKCS8EncodedKeySpec;
import java.security.spec.X509EncodedKeySpec;
import java.util.Base64;
import java.util.HashMap;
import java.util.Map;
/**
* @ClassName SHA256WithRSAUtils
* @Description (SHA256WithRSA 签名工具类)
* @Author Finlay
* @Date 2021-02-01
* @Version 1.0.0
*/
@Slf4j
public class SHA256WithRSAUtils {
public static final Charset CHARSET = StandardCharsets.UTF_8;
/**
* 密钥算法
*/
public static final String ALGORITHM_RSA = "RSA";
/**
* RSA 签名算法
*/
public static final String ALGORITHM_RSA_SIGN = "SHA256WithRSA";
public static final int ALGORITHM_RSA_PRIVATE_KEY_LENGTH = 2048;
private SHA256WithRSAUtils() {
}
/**
* RSA算法公钥加密数据
*
* @param data 待加密的明文字符串
* @param key RSA公钥字符串
* @return RSA公钥加密后的经过Base64编码的密文字符串
*/
public static String buildRSAEncryptByPublicKey(String data, String key) {
try {
//通过X509编码的Key指令获得公钥对象
X509EncodedKeySpec x509KeySpec = new X509EncodedKeySpec(Base64.getDecoder().decode(key));
KeyFactory keyFactory = KeyFactory.getInstance(ALGORITHM_RSA);
Key publicKey = keyFactory.generatePublic(x509KeySpec);
Cipher cipher = Cipher.getInstance(keyFactory.getAlgorithm());
cipher.init(Cipher.ENCRYPT_MODE, publicKey);
return Base64.getEncoder().encodeToString(rsaSplitCodec(cipher, Cipher.ENCRYPT_MODE, data.getBytes(CHARSET)));
} catch (Exception e) {
throw new RuntimeException("加密字符串[" + data + "]时遇到异常", e);
}
}
/**
* RSA算法公钥解密数据
*
* @param data 待解密的经过Base64编码的密文字符串
* @param key RSA公钥字符串
* @return RSA公钥解密后的明文字符串
*/
public static String buildRSADecryptByPublicKey(String data, String key) {
try {
//通过X509编码的Key指令获得公钥对象
X509EncodedKeySpec x509KeySpec = new X509EncodedKeySpec(Base64.getDecoder().decode(key));
KeyFactory keyFactory = KeyFactory.getInstance(ALGORITHM_RSA);
Key publicKey = keyFactory.generatePublic(x509KeySpec);
Cipher cipher = Cipher.getInstance(keyFactory.getAlgorithm());
cipher.init(Cipher.DECRYPT_MODE, publicKey);
return new String(rsaSplitCodec(cipher, Cipher.DECRYPT_MODE, Base64.getDecoder().decode(data)), CHARSET);
} catch (Exception e) {
throw new RuntimeException("解密字符串[" + data + "]时遇到异常", e);
}
}
/**
* RSA算法私钥加密数据
*
* @param data 待加密的明文字符串
* @param key RSA私钥字符串
* @return RSA私钥加密后的经过Base64编码的密文字符串
*/
public static String buildRSAEncryptByPrivateKey(String data, String key) {
try {
//通过PKCS#8编码的Key指令获得私钥对象
PKCS8EncodedKeySpec pkcs8KeySpec = new PKCS8EncodedKeySpec(Base64.getDecoder().decode(key));
KeyFactory keyFactory = KeyFactory.getInstance(ALGORITHM_RSA);
Key privateKey = keyFactory.generatePrivate(pkcs8KeySpec);
Cipher cipher = Cipher.getInstance(keyFactory.getAlgorithm());
cipher.init(Cipher.ENCRYPT_MODE, privateKey);
return Base64.getEncoder().encodeToString(rsaSplitCodec(cipher, Cipher.ENCRYPT_MODE, data.getBytes(CHARSET)));
} catch (Exception e) {
throw new RuntimeException("加密字符串[" + data + "]时遇到异常", e);
}
}
/**
* RSA算法私钥解密数据
*
* @param data 待解密的经过Base64编码的密文字符串
* @param key RSA私钥字符串
* @return RSA私钥解密后的明文字符串
*/
public static String buildRSADecryptByPrivateKey(String data, String key) {
try {
//通过PKCS#8编码的Key指令获得私钥对象
PKCS8EncodedKeySpec pkcs8KeySpec = new PKCS8EncodedKeySpec(Base64.getDecoder().decode(key));
KeyFactory keyFactory = KeyFactory.getInstance(ALGORITHM_RSA);
Key privateKey = keyFactory.generatePrivate(pkcs8KeySpec);
Cipher cipher = Cipher.getInstance(keyFactory.getAlgorithm());
cipher.init(Cipher.DECRYPT_MODE, privateKey);
return new String(rsaSplitCodec(cipher, Cipher.DECRYPT_MODE, Base64.getDecoder().decode(data)), CHARSET);
} catch (Exception e) {
throw new RuntimeException("解密字符串[" + data + "]时遇到异常", e);
}
}
/**
* RSA算法使用私钥对数据生成数字签名
*
* @param data 待签名的明文字符串
* @param key RSA私钥字符串
* @return RSA私钥签名后的经过Base64编码的字符串
*/
public static String buildRSASignByPrivateKey(String data, String key) {
try {
//通过PKCS#8编码的Key指令获得私钥对象
PKCS8EncodedKeySpec pkcs8KeySpec = new PKCS8EncodedKeySpec(Base64.getDecoder().decode(key));
KeyFactory keyFactory = KeyFactory.getInstance(ALGORITHM_RSA);
PrivateKey privateKey = keyFactory.generatePrivate(pkcs8KeySpec);
Signature signature = Signature.getInstance(ALGORITHM_RSA_SIGN);
signature.initSign(privateKey);
signature.update(data.getBytes(CHARSET));
return Base64.getEncoder().encodeToString(signature.sign());
} catch (Exception e) {
throw new RuntimeException("签名字符串[" + data + "]时遇到异常", e);
}
}
/**
* RSA算法使用公钥校验数字签名
*
* @param data 参与签名的明文字符串
* @param key RSA公钥字符串
* @param sign RSA签名得到的经过Base64编码的字符串
* @return true--验签通过,false--验签未通过
*/
public static boolean buildRSAverifyByPublicKey(String data, String key, String sign) {
try {
//通过X509编码的Key指令获得公钥对象
X509EncodedKeySpec x509KeySpec = new X509EncodedKeySpec(Base64.getDecoder().decode(key));
KeyFactory keyFactory = KeyFactory.getInstance(ALGORITHM_RSA);
PublicKey publicKey = keyFactory.generatePublic(x509KeySpec);
Signature signature = Signature.getInstance(ALGORITHM_RSA_SIGN);
signature.initVerify(publicKey);
signature.update(data.getBytes(CHARSET));
return signature.verify(Base64.getDecoder().decode(sign));
} catch (Exception e) {
e.printStackTrace();
}
}
/**
* RSA算法分段加解密数据
*
* @param cipher 初始化了加解密工作模式后的javax.crypto.Cipher对象
* @param opmode 加解密模式,值为javax.crypto.Cipher.ENCRYPT_MODE/DECRYPT_MODE
* @return 加密或解密后得到的数据的字节数组
*/
private static byte[] rsaSplitCodec(Cipher cipher, int opmode, byte[] datas) {
int maxBlock = 0;
if (opmode == Cipher.DECRYPT_MODE) {
maxBlock = ALGORITHM_RSA_PRIVATE_KEY_LENGTH / 8;
} else {
maxBlock = ALGORITHM_RSA_PRIVATE_KEY_LENGTH / 8 - 11;
}
ByteArrayOutputStream out = new ByteArrayOutputStream();
int offSet = 0;
byte[] buff;
int i = 0;
try {
while (datas.length > offSet) {
if (datas.length - offSet > maxBlock) {
buff = cipher.doFinal(datas, offSet, maxBlock);
} else {
buff = cipher.doFinal(datas, offSet, datas.length - offSet);
}
out.write(buff, 0, buff.length);
i++;
offSet = i * maxBlock;
}
} catch (Exception e) {
throw new RuntimeException("加解密阀值为[" + maxBlock + "]的数据时发生异常", e);
}
byte[] resultDatas = out.toByteArray();
IOUtils.closeQuietly(out);
return resultDatas;
}
}
显示 生成代签名字符串
显示 生成代签名字符串
public static String getSign(Object obj, String secretKey) {
Map<String, Object> map;
if (obj instanceof Map) {
map = (Map<String, Object>) obj;
} else {
map = BeanMapTool.beanToMap(obj);
}
Set<String> keys = map.keySet();
List<String> list = new ArrayList<>(keys);
Collections.sort(list);
// 构造签名键值对的格式
StringBuilder sb = new StringBuilder();
// 构造签名键值对的格式
for (String key : list) {
Object val = map.get(key);
// 如果key不为sign_type或sign，以及key不为空，则拼接进签名字符串。
if (!("".equals(val) || val == null || List.of("sign_type", "sign").contains(key))) {
sb.append(key).append("=").append(val).append("&");
}
}
sb.append("key=").append(secretKey);
return sb.toString();
}
import org.springframework.cglib.beans.BeanMap;
import java.lang.reflect.InvocationTargetException;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
/**
* bean和map互转
*/
public class BeanMapTool {
public static <T> Map<String, Object> beanToMap(T bean) {
BeanMap beanMap = BeanMap.create(bean);
Map<String, Object> map = new HashMap<>();
beanMap.forEach((key, value) -> map.put(String.valueOf(key), value));
return map;
}
}
显示 签名验签测试Demo
显示 签名验签测试Demo
public static void main(String[] args) {
String privateKey = "MIIEvgIBADANBgkqhkiG9w0BAQEFAASCBKgwggSkAgEAAoIBAQCKqgxszb4ObuoJ5U8Ddz2ytOFFc81fmniRFo+jvNtrOegMUpd9gBPvMEaBzdeJC74Cg/HsAE7f9u24APLi0oLYZCwthhs01xTIhAis8h7IYCSdWrcbn8gpB7apSe4Ud0dS6zkuRcDTVGsLNrzNOMKHfT8S13dtsqDyDBBhSpkBwe9TkeLQB8K5ZjDYJ8uTtsrcey95eNFe22r8qAhv562yUBTG0PjZpQmiJWD0T6URLLzNYEOXEzsVVZgPKBNWSVZvMjLg32eFv/2Mw+x83n44w39FLx6E347A5hVQYWbBLuHDyFUzW/endOmMSj1YJmGDhctgEK+UIA1bNbexYo33AgMBAAECggEAZlZ6NRLjYeOZ9xO17OjkMDAu0gNVX2mx8eKkwENx7QEfsXiDNayBCdanMsWofQydf13B/lt72u9zIooQuDaFOw8zS6XeDnFudU582KcY8OmEHF4HJewW3bFDrk1R2OjvStMvsGbqmQ2EsxIC5bMuXrChDFbZXayn+/vLWwKjShetqPkN2cRHcKWaASqOnWOAnpgHm5VuGu2ttaR5K14pmMq7a0TOaj7lDYyHelWejCfqFFiWfYLefNj3oFVAfiNxwsxj8q42xWwPZ/Xzhn8p0cInja//1AMuNLIadyC4r6VR7cOIKm4F7XwCTCRCSmPbhDu5pOEA//pERFTTNtE7gQKBgQDdzbujAJRqkn0WwPtbKE7ZxR2KFjc4fM1LyPyODz4tbXhtXtZeMcjjsKn8pTpzbgj+Cfmhz9X8sKAqdxe1WJTtkgg5zbvPQ8A+Q0Su19LZMfFCuC0RCp1SX/asl4XeQe6fQZCft3AG7RgA5HjHET0/7Mpwb3C7A/xBwMfn51T0+wKBgQCgCuy9NmpG2bG/MEz1gDojYe08yKOGgTLp6v/UZcn+U6Oit37/sFe0vU7n9NMtkCLdhf2mqF1cNCUv+rzHkvtgG8FaNlsuozOMXuTNCJ6nj/IypMOnU8vV9DL9zUq5cUnny7HKwCTuS8FYZTjI75GfDDwrxIhhzOIkh2leQD+iNQKBgDV1xOgA18ToEeZOFUdfa8HpVLlXqW+gBQtjIhxLaD0iyYfy99A0R6s5hX8zg+cWemxgkx6BLZ5+I9yYX8qB00N/kyP7hmzqc4eORxutQVDATNo78gDNgiW8o4Pt8YIkehNAhk84s3O36bUtXD7+1Lh3pkN7WLx6tW5TvNsUUtHJAoGBAIYOoJ8dpYgTccAkRVKfRhO9Q2tW5SMVtgAayJCxcrGGfdseuVKT8+OBb0b83KedxJaqVf3zqcBCLaQy80543/dxSFS4k0hNjDBYjG7yeXMCMG4bdYgDuQpOsyfFfoI3UyDGjva2XDj/W8UfhKFLiz8ekIhY56SEaikPBEPerW7BAoGBAIW+5xD7BH4Z/w+GNrA5WFWNNH02+32AD/k6W59GQ+ejrFzCa9/SPa/7WEbBjKNWnzYl9pcdA0lP3LGEbKzrm6Zy+6lCHI6Hx/o4PbHaKTQg2jAIJdEUrAOKR44rjIY41a8wtgilfZA4I4zDSvJMPkMYOItIXjFCwHTxLLfw0CJp";
String publicKey = "MIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEAiqoMbM2+Dm7qCeVPA3c9srThRXPNX5p4kRaPo7zbaznoDFKXfYAT7zBGgc3XiQu+AoPx7ABO3/btuADy4tKC2GQsLYYbNNcUyIQIrPIeyGAknVq3G5/IKQe2qUnuFHdHUus5LkXA01RrCza8zTjCh30/Etd3bbKg8gwQYUqZAcHvU5Hi0AfCuWYw2CfLk7bK3HsveXjRXttq/KgIb+etslAUxtD42aUJoiVg9E+lESy8zWBDlxM7FVWYDygTVklWbzIy4N9nhb/9jMPsfN5+OMN/RS8ehN+OwOYVUGFmwS7hw8hVM1v3p3TpjEo9WCZhg4XLYBCvlCANWzW3sWKN9wIDAQAB";
Map<String, Object> request = new HashMap<>();
request.put("appId", "1000");
request.put("orderNo", "1000");
//待签名字符串获取
String content = SignUtils.getSign(request, "WFZflvcV75jYP2G6QIpSsMtoX1e4awxO");
//执行签名
String sign = SHA256WithRSAUtils.buildRSASignByPrivateKey(content, privateKey);
System.out.println("签名:" + SHA256WithRSAUtils.buildRSASignByPrivateKey(content, privateKey));
System.out.println("校验:" + SHA256WithRSAUtils.buildRSAverifyByPublicKey(content, publicKey, SHA256WithRSAUtils.buildRSASignByPrivateKey(content, privateKey)));
}
5. 示例报文
请求// 菲律宾代收请求
POST https://uat-interface.haipay.asia/php/collect/apply
Content-Type: application/json
{
"appId": 1054,
"orderId": "M233323000059",
"amount": "300",
"phone": "09230219312",
"email": "23423@qq.com",
"name": "test",
"inBankCode": "PH_QRPH_DYNAMIC",
"payType": "QR",
// sign: 根据请求body使用merchant privateKey签名
"sign": "af0gAHkUOyYHu9owQp8NJ4mPEeUW4vuJcjdxqLIzrVw8AvpLSjD1DXupReSG/CyuSkFRyiIvCp5u703AuGGmfgD2gKDH3Ywau41bAbG2jnHJ8mtjiSJ5iWUzanyd4Kr7d1+rETbzUl7/BkW3t0X8UUFdqpxwG8DPUjAwUKfplWDHV7koG51Ozexd80DCsmW6eWdouAZ1uNXGLYmV3ftE3BmfNRtuv1C5bfTJWrTEIOxbF6g2uYOFZTlIgrQgd7/2PsAYwQQXNz8Q8CYl4OxqCv4pXJxaLWPbR5tqZu9og5kn32C9aHW/NlU1y39vzz+4ef81yPAqUV9oHlSMSPrMmw=="
}
HTTP/1.1 200 OK
Content-Type:application/json
{
"status": "1",
"error": "00000000",
"msg": "",
"data": {
"orderId": "M233323000059",
"orderNo": "6023071013539074",
"payUrl": "https://a.api-uat.php.com/1L9zQS2",
"bankCode": "GCASH_STATIC_VA",
"bankNo": "PC0007I10000035",
"qrCode": "00020101021228760011ph.ppmi.p2m0111OPDVPHM1XXX0315777148000000017041652948137245442930503001520460165303608540810000.php Of Mandalu62310010ph.allbank05062110000803***88310012ph.ppmi.qrph0111OPDVPHM1XXX63042763",
// sign:HaiPay签名信息，商户根据响应json body以及HaiPay publicKey验签
"sign": "YEoA8Y2JzQFGVzwJSqmemm1Kfv/bfyIfCqv2dp7RNzT5B72AQvdD+nt2nR4sL1HWscvmNHyVt5ovAi7MMhy3ziih/sMph+wPx4YjH3W1h5DyBvSlWvaKfKrK5ViomZ0pPYWydwRHnnRnicxToHK9S6qtSy7Q73O0hdz4hJ9p41Th3ycBl2Q9SeqSZYSY1ohcPDhdyRf2y0prb8rHgpBKzxZ5BKX/1bsE9OmsSEHAEYT8OGgko6aNe8XPAhr4G48cpWTftvnGQuzh0O65nuZRI/PF+Axt2zJCVbFHDDSREI9NlAT82ebDqhlVdxQzKE67D1nxgjb3dPmDUYHOBpmwxQ=="
}
}
